Neuson Forest 204HVT
The new 20t all-round machine
from Neuson Forest
Applications range from 2nd thinning to harvesting individual trunks and final felling.
This is a completely new design with the tried and tested parallel crane technology by Waratah. The main goal of this development was improving power density and comfort as well as consistently implementing customer requesting from all 6 continents. Ergonomics and maintainability have also been improved. But let’s start at the beginning.
At the heart of the 204 HVT is a 6-cylinder John Deere diesel engine with a displacement of 6,800 cm³. The maximum power of the machine is 222HP at a weight of about 20t, so it has 25% more engine power per kilo machine weight than the 183HVT.
This also allowed us to increase the maximum speed in 2nd gear to about 5 km/h without losing tractive force. Like all Neuson Forest machines, the ratio between tractive force and net weight is significantly over 1. So the tractive force is always greater than the machine mass.
The crane is a CH610 by Waratah. Based on the definition of the KWF, this means a reach of 10.2 m. It can optionally also be equipped with a long crane version with true 11.5m reach.
True to the Neuson Forest principle, the crane can optionally be equipped with a variety of heads and control systems. The goal when developing this machine was the ability to process trunks up to 60 cm in diameter. Compatible heads for the machine are for example LogMax 5000D, AFM 55 or Waratah H414.
Of course, the machine has the usual tried and tested slope compensator of +25° at the front and +/- 15° on each side. A width from 2.50m, the tight tail swing and the low center of gravity enable working in extremely small spaces and guarantee the stability Neuson machines are known for.
The hydraulic swivel service platform, engine covers that open to the sides and the hydraulic swivel cabin ensure the best possible serviceability. The standard reversible fan reduces the amount of time required for daily service.
Notable improvements when it comes to comfort and ergonomics are the reduced sound level and the new cabin design. The machine further comes standard with the sensitive xCrane control system by Technion.
Key new options are Auto Leveling and the STH System. For more information on all machine details, go to Features.
Explore all machine features
Machine features
The first task was: Listening.
Machine features
The first task was: Listening.
Easy Drive
Easy Handover
Perfectly Ergonomic:
A simple push of a button is enough to switch between foot and joystick control for the operation of the tracks.
No more tired legs when moving the machine long distances!

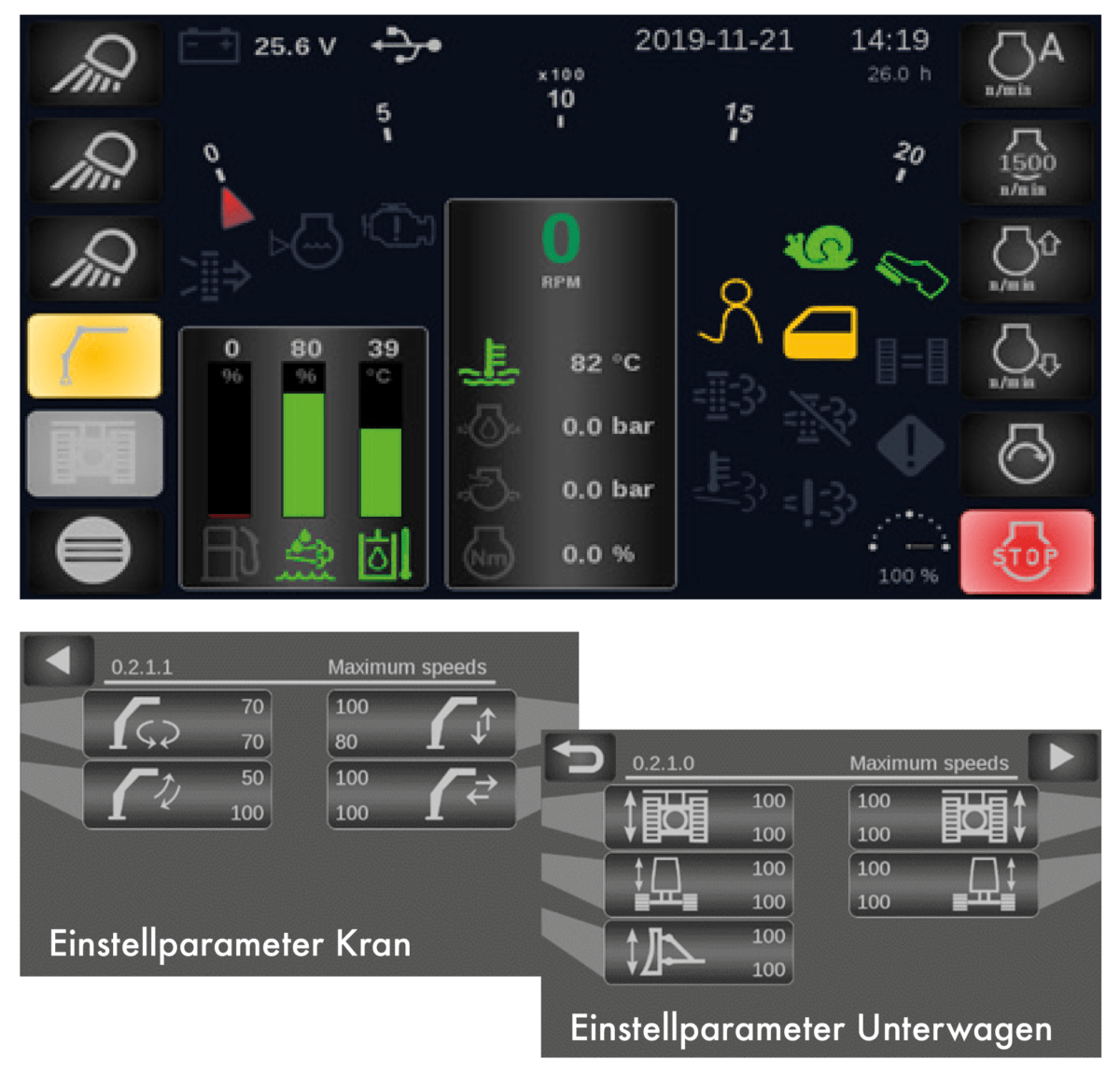

Intuitive Control
Everything at a glance
Everything under control
Everything at a glance: The main menu
Thanks to the electrical pilot control and the XCrane control from Technion, the machine is easily adaptable to the needs of the operator.
You can choose from 5 individually adjustable driver profiles.

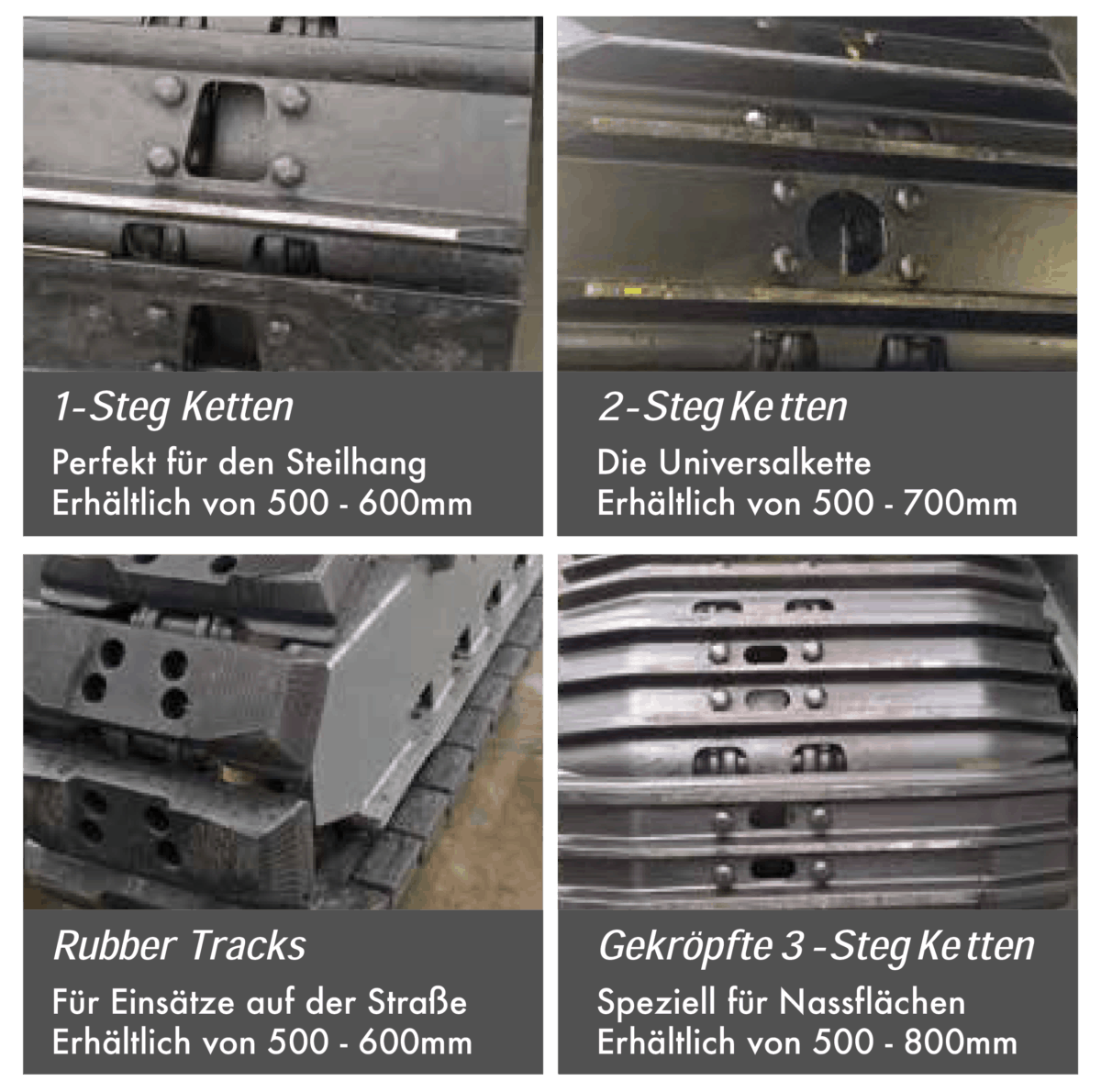

Customized Track
From the swamp to the steep slope
Chain change in minutes:
Thanks to the various chain options, the machine can be adapted to your application in a very short time. And with the practical quick-changing bolt, the chain can be changed in no time.
Ergonomic Space
Work place and Living space
The interior of the 204HVT was re- developed in an intensive design process.
The first task was: Listening.
Namely to the drivers who work with our machines on a daily basis. Based on this knowledge, we not only designed a functional work place,
but also a living space.
In this extreme environment comfort is not just a luxury, but a requirement:
Fatigue free seating and hand position. Unhindered view. Pleasant temperature and extensive protection from noise and vibrations.
And we went a step further by integrating a number of features that make life easier:
Lots of intelligent storage space,
a large cool box,
a cup holder,
mobile phone dock,
USB ports und muchmore.
Smart Tip Handling
Ingenious Crane tip control
The driver has direct control of the crane:
The crane can be operated easily and precisely with the STH-System. The left mini-lever controls horizontal movement, the right one controls vertical movement of the head.
This intuitive handling enables fatigue-free work, high productivity and thus cost savings.
Auto-Leveling
Automatic balancing
The 204HVT is equipped with a proven
superstructure levelling system (Tilt).
A slope compensation of 25° at the front
and +/- 15° at the side enables efficient work
in steep and impassable terrain.
With the auto- leveling option,
the machine keeps its balance independently.
The 204HVT is equipped with a proven
superstructure levelling system (Tilt).
A slope compensation of 25° at the front
and +/- 15° at the side enables efficient work
in steep and impassable terrain.
With the auto- leveling option,
the machine keeps its balance independently.

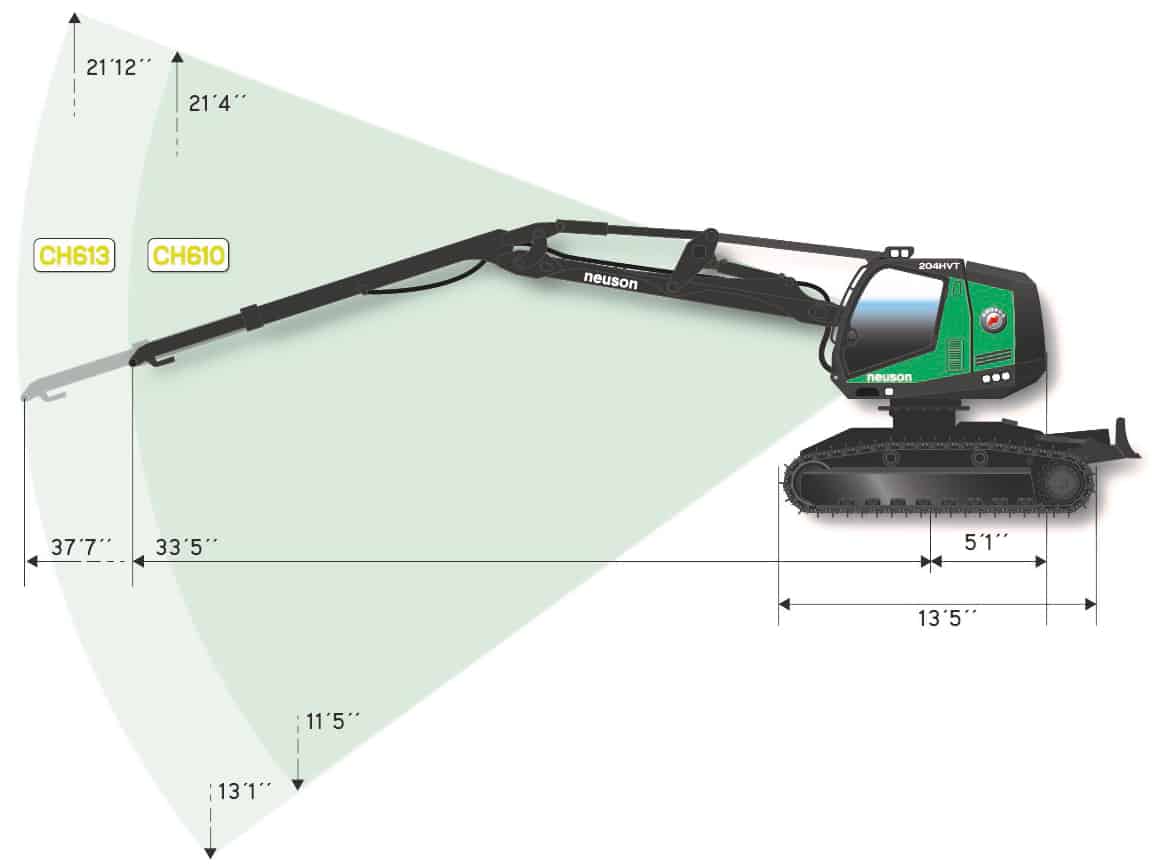

FarReach
The crane we use is the CH6 series from Waratah.
Of course, a parallel crane that best meets our customer
requirements.
FarReach
The crane we use is the CH6 series from Waratah. Of course, a parallel crane that best meets our customer requirements.
Short Tail
Short and sweet
The minimal overhang of the stern allows maneuvering in narrow fields and is very gentle on crops.

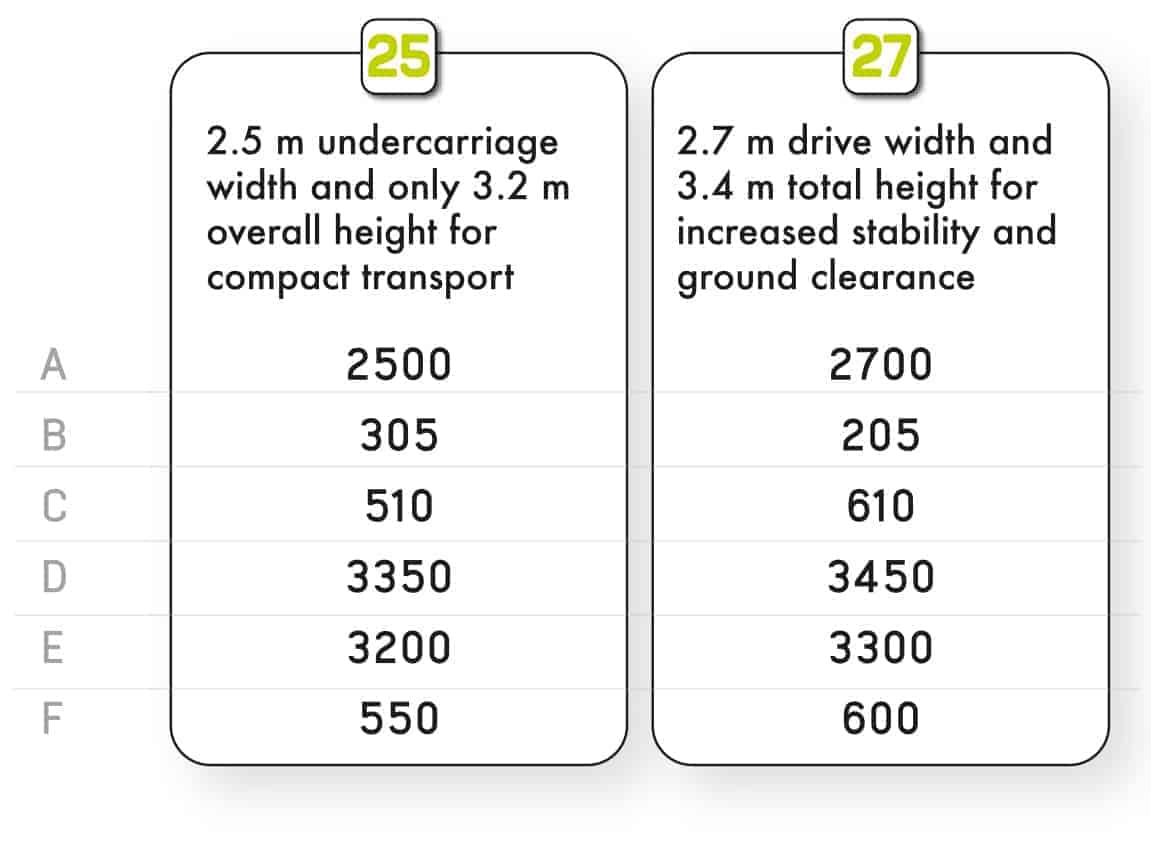

Measurements in mm!

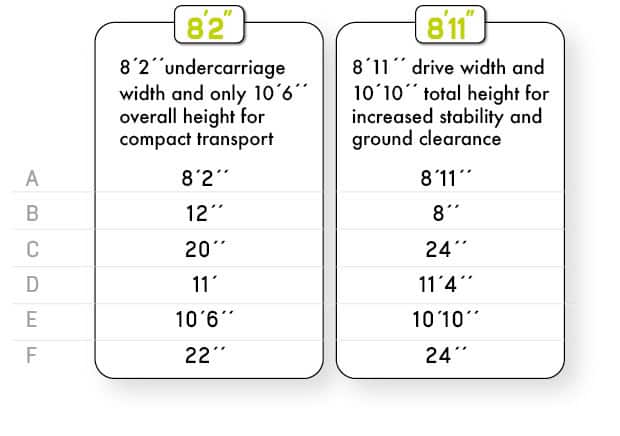

Measurements in inch!
Service
We are here for you!
Space accessibility for servicing is available in all models. This is due to the efficient technology of tilting cabs for essential service and repairs.
Both the cabin and the platform can be opened hydraulically.
Harvester with slope leveling on all machine models. Thanks to the generous space provided and the clear arrangement of all components, service or repair work can be carried out ergonomically, quickly and safely.
